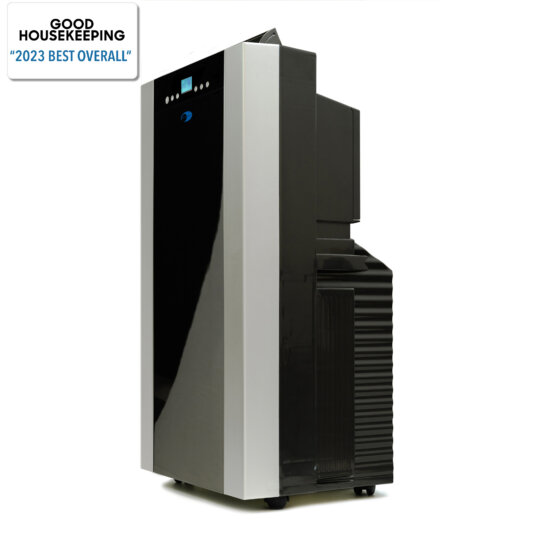

ARC-14S Dual Hose Portable Air Conditioner

Description
Additional information
Features and Specifications
Support
Video
Accessories
Retailers

Product Description

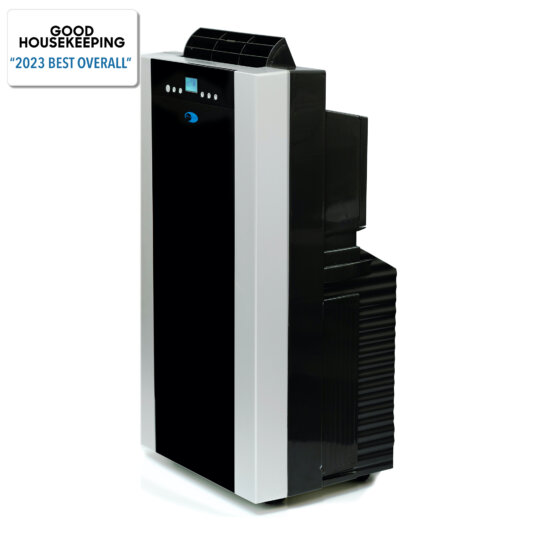

Want an AC unit that is environmentally conscious and super effective? This Whynter dual hose portable air conditioner can cool up to 500 sq ft of space, using its efficient activated carbon air filter that includes a washable pre-filter. This unit is designed to be both a portable air conditioner and dehumidifier, using a dual hose system for maximum cooling power. The sleek platinum/black design combination makes for a unit that looks good while getting the job done.

This model was rated the Good Housekeeping 2023 Best Overall – a Whynter dual-hose portable air conditioner is sure to be a powerful choice for your space.

Additional information

ASHRAE BTU	14,000 BTU
SACC BTU	9,500 BTU
Color	Black, Platinum
Coverage Sq. Ft.	500 sq. ft.
Dehumidifying Capacity	71 pints/ day
Exhaust Hose Length	Max. 60"
Window Kit Length	6.5" W x 20" (min)/ 46" (max) L
Fan Speed	3 speed
Filter Type	Carbon air filter and washable pre-filter (compatible with 3M filter)
Heat Mode	No

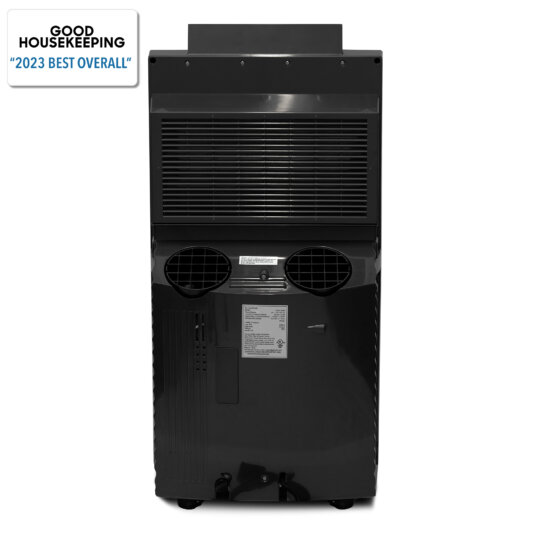

Hose System	Dual Hose
Maximum Power Consumption	1300 Watts / 11.6 Amps
Noise level (dBA)	< 56
Pump Feature	No
Refrigerant	R-32
Replacement Filter	Carbon: ARC-CF-14S 3M Antimicrobial: ARC-FIL-3M
Replacement Hose	ARC-EH-TYPE-L
Replacement Window Kit	ARC-WK-DUALN
Storage Bag	Yes
Temperature Range	61°F – 89°F
Upper Gravity Drain Port	No
Unit Dimensions	16" W x 19" D x 35.5" H

Features and Specifications

● BEST OVERALL PORTABLE AIR CONDITIONER by Good Housekeeping

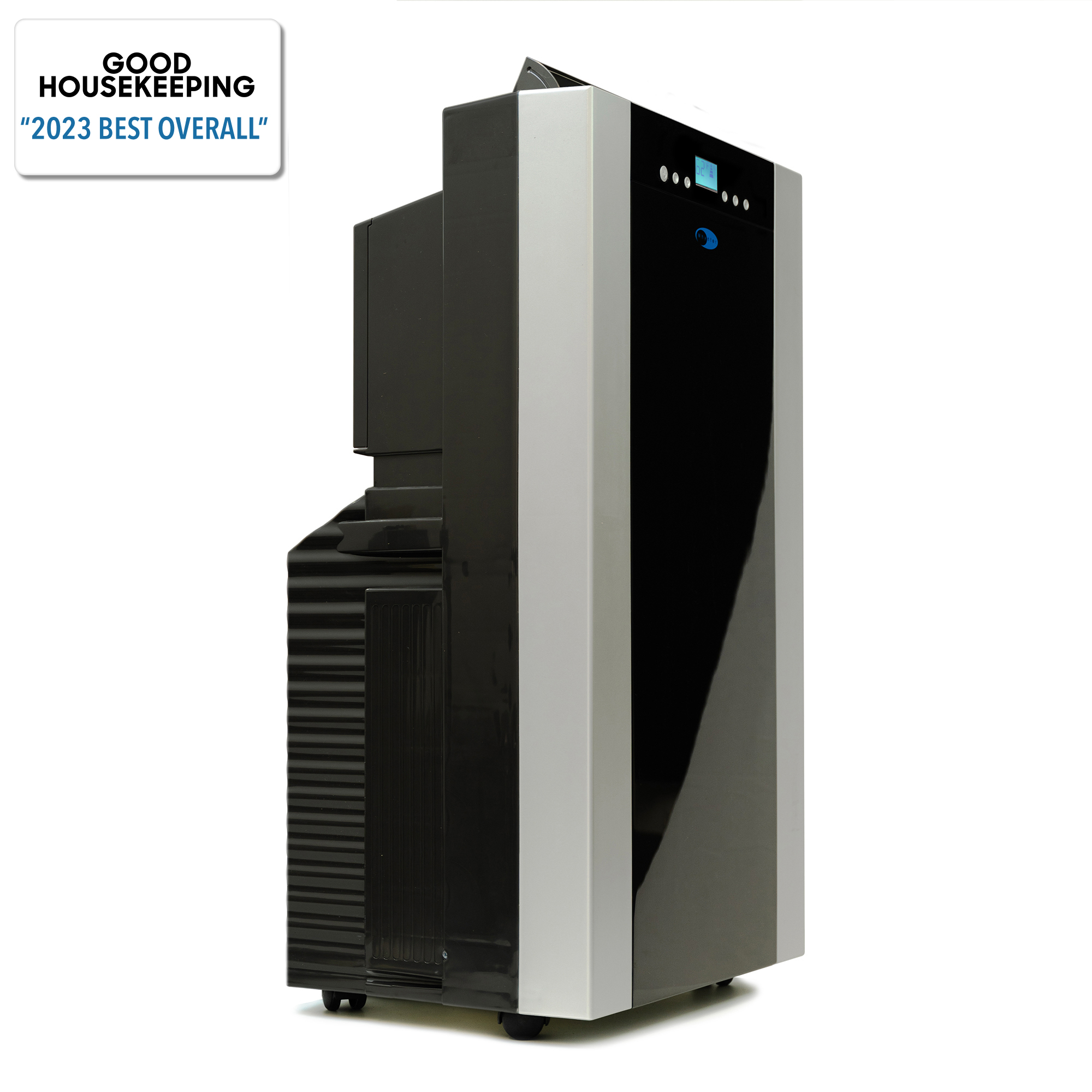

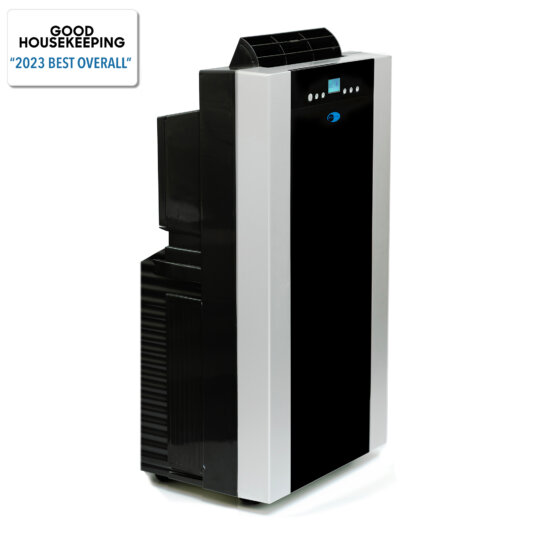

● Two tone design exterior- Platinum and Black
● 14,000 BTU Cooling (ASHRAE-128 Standard) / 9,500 BTU (DOE 2017 Standard)

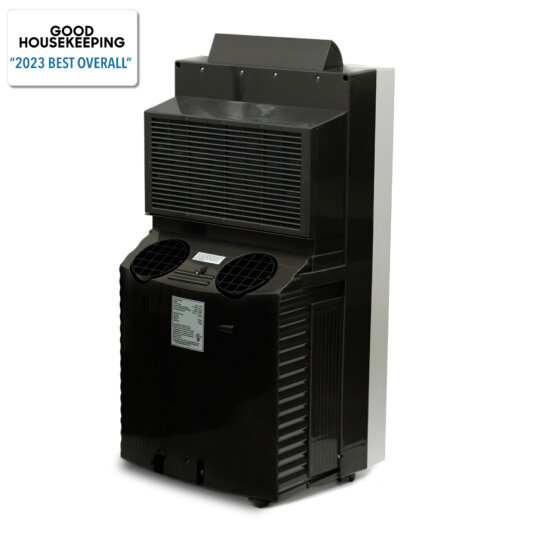

● Dual hose operation
● ECO-FRIENDLY CFC free GREEN R-32 refrigerant
● Lead free RoHS compliant components
● Patented auto drain function fully exhausts all condensate automatically in most environments
● Three operational modes: Air conditioner, fan or dehumidifier

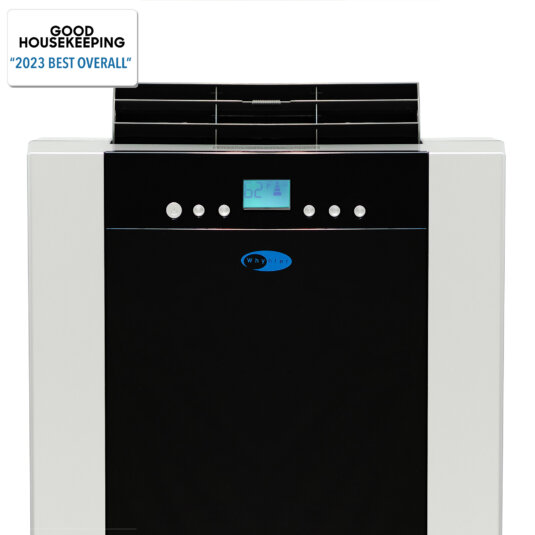

● Digital and remote control

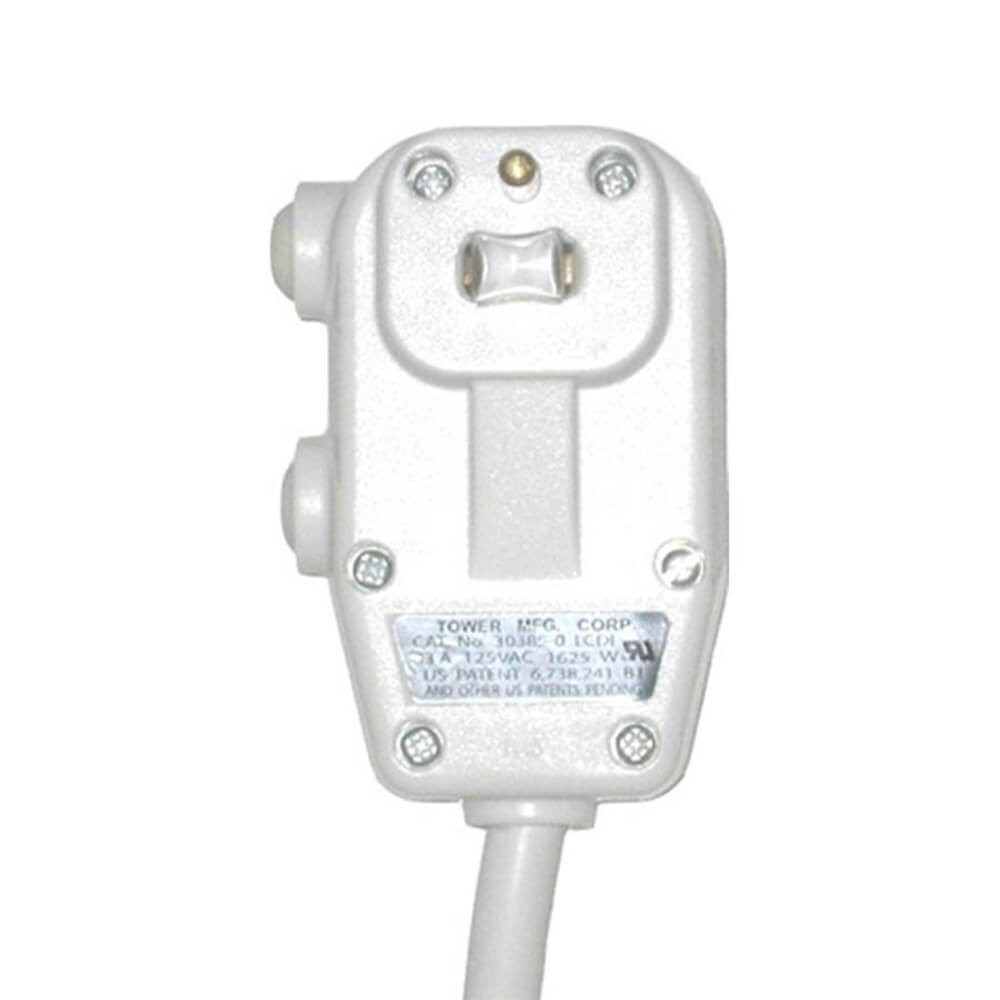

● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 71 Pts / day
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 3 fan speeds
● Activated carbon air filter and washable pre-filter
● Full thermostatic control (61°F – 89°F)
● Casters for easy mobility
● 24 hour programmable timer
● Noise level (dBA): <56
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable exhaust hose (up to 60″)
● Upgraded Plastic window kit included
● Window kit dimension: 6.5″ W x 20″ L (minimum), 46″ (maximum)
● Exhaust/ Intake Hose: 5.9″ diameter
● Hose Connectors: 5.9″ diameter with 5.0″ diameter reducer
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 46″ (max) L
● Refrigerant: R-32/16.5oz(468g)
● Air Flow (at high speed): 430 m3/h / 253 CFM
● Maximum power consumption: 1300 W / 11.6 A
● Power supply: 115 V / 60Hz / 1 Phase
● Unit dimensions: 16″ W x 19″ D x 35.5″ H
● Package dimensions: 21″ W x 19″ D x 46″ H
● Net weight: 73 lbs
● Gross weight: 100 lbs
● UL listed
● UPC 891207001545

*This unit comes with one year warranty and three year warranty on the compressor.

Support

USER MANUAL >>

Troubleshooting >>

FAQs

Good Housekeeping Chooses Whynter as BEST OVERALL

TOOL DIGEST – BEST PORTABLE AIR CONDITIONER 2022

Video

Whynter ARC-14S Portable Air Conditioner Introduction & Installation Guide

Accessories

Intake / Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose(s) and/or connector(s) listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.

NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.

ARC-EH-TYPE-S
(Whynter Intake / Exhaust hose 5.0″ diameter)
Available at:
Ambient Stores
Amazon.com

ARC-EH-TYPE-L
(Whynter Intake / Exhaust hose 5.9″ diameter)
Available at:
Ambient Stores
Amazon.com

Hose Extender Sets: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose connector sets listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.

ARC-HCSET1-V1
(One Whynter hose connector set for 5.0″ diameter hose)
Available at:
Ambient Stores

ARC-HCSET2-V1
(Two Whynter hose connector sets for 5.0″ diameter hose)
Available at:
Ambient Stores

ARC-HCSET1-V2
(One Whynter hose connector set for 5.9″ diameter hose)
Available at:
Ambient Stores

ARC-HCSET2-V2
(Two Whynter hose connector sets for 5.9″ diameter hose)
Available at:
Ambient Stores

Window Slide Bars: ARC-WK-DUALN
Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
Available at:
Ambient Stores
Amazon.com

Activated Carbon Filter: ARC-CF-14S
Whynter Activated Carbon Filter
Available at:
Ambient Stores
Amazon.com

3M™ Antimicrobial Filter: ARC-FIL-3M
Whynter 3M™ Antimicrobial Filter
Available at:
Ambient Stores
Amazon.com

Storage Bag: ARC-STRGBG-A
Whynter portable air conditioner storage bag
Available at:
Ambient Stores
Amazon.com

Optional Intake Hose Pre-Filter: ARC-IHF
Whynter Intake Hose Pre-filter
Available at:
Ambient Stores
Amazon.com

Optional Lower Drain Bucket: ARC-DB
Whynter optional drain bucket for manual draining from lower drain port
Available at:
Ambient Stores
Amazon.com

Complete Accessories Set: ARC-ACC-DUSETG1-V1
Available at:
Ambient Stores

Complete Accessories Set: ARC-ACC-DUSETG1-V2
Complete Ventilation Set for ARC-14S
Available at:
Ambient Stores
