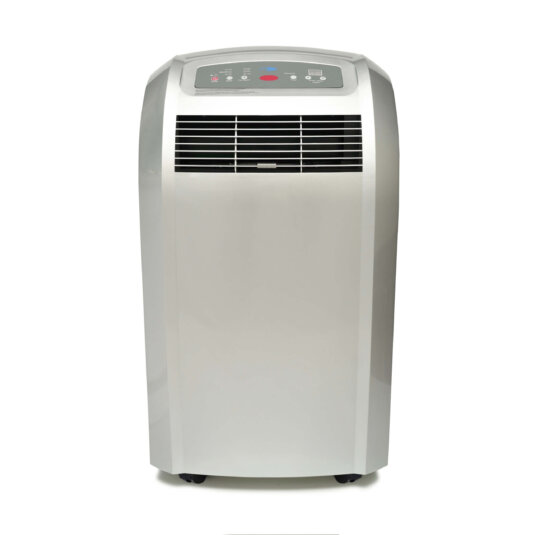

For a 3-in-1 portable air conditioner that will get the job done, the Whynter ARC-12S is a great choice. Combining a powerful fan with a dehumidifier and an air conditioning unit that uses auto drain technology, you experience cooling power that lasts when you use this portable air conditioner with a carbon filter.
Mobile, efficient, and eco-friendly, our ARC-12S has a 12,000 BTU and comes in a sleek platinum design. For your convenience, the filter is pre-installed.
| ASHRAE BTU | 12,000 BTU |
|---|---|
| SACC BTU | 5,000 BTU |
| Color | Platinum |
| Coverage Sq. Ft. | 400 sq. ft. |
| Dehumidifying Capacity | 91 pints/ day |
| Exhaust Hose Length | Max. 60" |
| Window Kit Length | 6.5" W x 20" (min)/ 46" (max) L |
| Fan Speed | 3 speed |
| Filter Type | Carbon air filter and washable pre-filter |
| Heat Mode | No |
| Hose System | Single Hose |
| Louver Type | Fixed with manual side to side |
| Maximum Power Consumption | 1000W/ 9.2A |
| Noise level (dBA) | < 52.5 |
| Pump Feature | No |
| Refrigerant | R-410A |
| Replacement Filter | Carbon: ARC-CF-12S |
| Replacement Hose | ARC-EH-TYPE-L |
| Replacement Window Kit | ARC-WK-SINGN |
| Storage Bag | Yes |
| Temperature Range | 61°F – 89°F |
| Upper Gravity Drain Port | Yes |
| Unit Dimensions | 17" W x 15.5" D x 31" H |
● Platinum color
● 12,000 BTU Cooling
● ECO-FRIENDLY CFC free GREEN R-410A refrigerant
● Lead free RoHS compliant components
● Patented auto drain function fully exhausts all condensate automatically in most environments
● Three operational modes: Air conditioner, fan or dehumidifier
● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 91 Pts / day
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 3 fan speeds
● Carbon air filter and washable pre-filter
● Full thermostatic control (61°F – 89°F)
● Casters for easy mobility
● 24 hour programmable timer
● Noise level (dBA): < 52.5
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable exhaust hose (up to 60″)
● Upgraded Plastic window kit included
● Exhaust Hose: 5.9″ diameter
● Hose Connectors: 5.9″ diameter with 5.0″ diameter reducer
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 46″ (max) L
● Refrigerant: R-410A
● Air Flow (at high speed): 320 m3/h / 188 CFM
● Maximum power consumption: 1000 W / 9.2 A
● Power supply: 115 V / 60Hz / 1 Phase
● Unit dimensions: 17″ W x 15.5″ D x 31″ H
● Package dimensions: 20″ W x 19″ D x 35″ H
● Net weight: 63 lbs
● Gross weight: 78 lbs
● UL listed
● UPC 891207001538
*This unit comes with one year warranty and three year warranty on the compressor.
Intake / Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose(s) and/or connector(s) listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.
NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.
ARC-EH-TYPE-S
(Whynter Intake / Exhaust hose 5.0″ diameter)
Available at:
Ambient Stores
Amazon.com
ARC-EH-TYPE-L
(Whynter Intake / Exhaust hose 5.9″ diameter)
Available at:
Ambient Stores
Amazon.com
Hose Extender Sets: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose connector sets listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.
ARC-HCSET1-V1
(One Whynter hose connector set for 5.0″ diameter hose)
Available at:
Ambient Stores
ARC-HCSET1-V2
(One Whynter hose connector set for 5.9″ diameter hose)
Available at:
Ambient Stores
Window Slide Bars: ARC-WK-SINGN
Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
Available at:
Ambient Stores
Amazon.com
Activated Carbon Filter: ARC-CF-12S
Whynter Activated carbon filter
Available at:
Ambient Stores
Amazon.com
Storage Bag: ARC-STRGBG-B
Whynter portable air conditioner storage bag
Available at:
Ambient Stores
Optional Lower Drain Bucket: ARC-DB
Whynter optional drain bucket for manual draining from lower drain port
Available at:
Ambient Stores
Amazon.com
Optional Upper Drain Hose: ARC-TYPN-UDPH
Whynter optional upper drain hose for continuous gravity drainage setup
Available at:
Ambient Stores
Complete Accessories Set: ARC-ACC-SISET-V2
Complete Ventilation Set for ARC-12S
Available at:
Ambient Stores
No matter where you live or work and need the power of a 3-in-1 portable air conditioner, Whynter’s ARC-12S is designed to be an effective choice for maximizing your energy efficiency. This 3-in-1 portable air conditioner actively considers the environment in each aspect so you reduce energy consumption with this efficient choice for cooling power. CFC-free R-410A refrigerant combines with lead-free RoHS-compliant components for an environmentally conscious material construction. Plus, the auto drain technology mechanism recycles moisture collected during the cooling process so you use and maintain cool air with less energy consumption than a regular unit. There is also an LCDI (Leakage-Current Detection and Interruption) plug.
In every design aspect, the ARC-12S combines efficiency with eco-friendly considerations. You can cool up to a 400 sq. ft. space with this portable air conditioner with a carbon filter design. Optimum performance may be influenced by humidity levels and ambient temperatures.
Our portable air conditioner with a carbon filter is designed to be easy to move and enjoy. The extendable exhaust house reaches up to 60”, and an upgraded plastic window kit is included with your purchase. You can set up this 3-in-1 portable air conditioner in almost any indoor location; we see our units most commonly used in computer/server rooms, bedrooms, classrooms, and garages/workshops.
While your unit is in storage, you can protect it with the included cover that keeps dust and dirt from collecting on your ARC-12S. Additionally, the pocket in the protective cover can store your exhaust hose, window kit, remote control, and user manual when not in use.
Whynter offers premium solutions for cooling power that will help you get the job done, no matter if you’re looking for an environmentally conscious humidifier for the bedroom or a portable AC for the office. This 3-in-1 portable air conditioner option is versatile and eco-friendly, and it’s just the beginning of what you can find in our air comfort line. Visit our product gallery to find portable ACs and more, and then see what appliances are available near you as sold by certified Whynter retailers. Contact us with any questions by phone (1-866-WHYNTER) or email ([email protected]).
